Hemingray Insulator Profile: CD 113
Home > Hemingray Database
The No.12 was a very popular pony style, and can commonly be found in aqua and clear colors. As a telephone exchange insulator, the upper wire groove held the line, and the lower wire groove supplied the drop wire to the house.

Dimensions: 3 1/2" H x 2 3/8" W
Primary
Embossings:
• HEMINGRAY
• NO EMBOSSING
• PATENT - OTHER
Years Produced:
c.1890s-1940s
Style Numbers:12, 9 (error)
Usage: Telephone
Trade Name: Double Groove Pony
Mold Variations Collapse
Early Script Style
This is the earliest style mold with the script embossing style. Note the rounded dome and thinner, rounded wire groove lips.
Prismatic Style
Before the modern stamped style and after the script style embossing was the prismatic style embossed mold, shown here. This particular mold is slimmer with more shallow wire grooves.
Tapered Mold
Beginning in 1941, Hemingray switched to this style. This was the last style produced. Note the larger lower wire ridge that tapers down to the lower wire groove.
Known Embossings (41) Collapse

HEMINGRAY Unlisted (F-Skirt) HEMINGRAY 12 (R-Skirt) MADE IN U.S.A. {'N' is engraved over a sideways 'N'} RDP Photo
HEMINGRAY Unlisted (F-Skirt) HFMINGRAY {Note spelling} {Note 'A' is missing bar} / N12 / ['9' blotted out] (R-Skirt) PATENT / MAY 2 1893 SDP Photo
HEMINGRAY Unlisted (F-Skirt) HEMINGRAY-12 {'H' is engraved over an 'E'} (R-Skirt) MADE IN U.S.A. RDP Photo
HEMINGRAY [010] (F-Skirt) HEMIGRAY/Nº 12 {Note spelling} (R-Skirt) PATENT/MAY 2 1893 {Note 'E' is backwards} SDP Photo
HEMINGRAY [015] (F-Skirt) HEM1NGRAY/Nº12 {Note '1' instead of 'I' in 'HEM1NGRAY'} (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [020] (F-Skirt) HEMIGRAY/Nº 12 {Note spelling} (R-Skirt) PATENTED SDP Photo
HEMINGRAY [025] (F-Skirt) HEMINGAY-12 {Note spelling} (R-Skirt) MADE IN U.S.A. RDP Photo
HEMINGRAY [030] (F-Skirt) HEMINGAY-12 {Note spelling} (R-Skirt) MADE IN U.S.A. SDP < WANTED!
HEMINGRAY [040] (F-Skirt) HEMINGRAY (R-Skirt) Nº 12 SDP Photo
HEMINGRAY [045] (F-Skirt) HEMINGRAY/Nº 12 [Vertical 'Nº' blotted out] SDP Photo
HEMINGRAY [050] (F-Skirt) HEMINGRAY (R-Skirt) PATENTED SDP < WANTED!

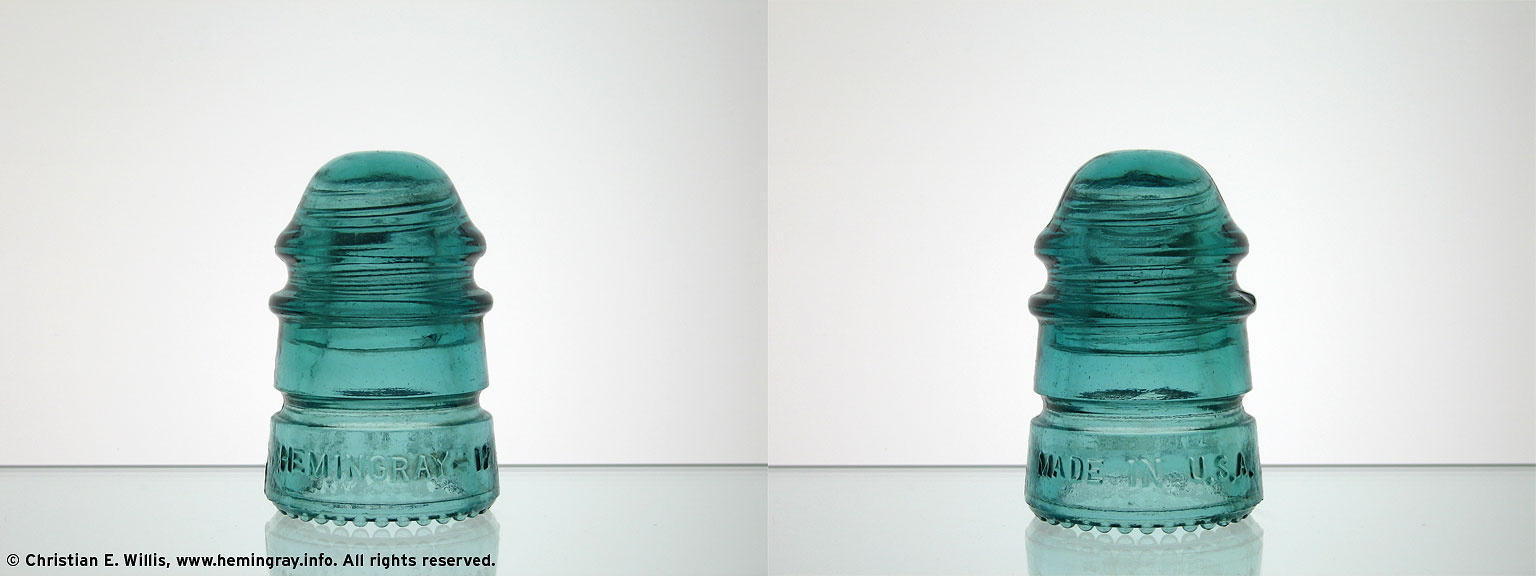

HEMINGRAY [060] (F-Skirt) HEMINGRAY-12 (R-Skirt) MADE IN U.S.A. RDP Photo
HEMINGRAY [070] (F-Skirt) HEMINGRAY-12 (R-Skirt) MADE IN U.S.A. SDP < WANTED!
HEMINGRAY [090] (F-Skirt) HEMINGRAY-12 (R-Skirt) MADE IN U.S.A./[Numbers and dots] {Larger lower wire ridge which tapers more from there to the lower wire groove} RDP Photo
HEMINGRAY [095] (F-Skirt) HEMINGRAY-12/[Number] (R-Skirt) MADE IN U.S.A. RDP Photo
HEMINGRAY [100] (F-Skirt) HEMINGRAY-12/[Numbers and dots] (R-Skirt) MADE IN U.S.A./[Numbers] RDP Photo
HEMINGRAY [110] (F-Skirt) HEMINGRAY/HE Nº 12/[Upside down 'Nº' blotted out] {Note extra 'HE'} (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [115] (F-Skirt) HEMINGRAY/MA Nº 12 {Note extra 'MA'} (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [120] (F-Skirt) HEMINGRAY/MADE IN U.S.A. (R-Skirt) Nº 12 SDP Photo
HEMINGRAY [125] (F-Skirt) HEMINGRAY / MADE IN U.S.A. (R-Skirt) Nº12 {Nº12 is engraved over a rotated Nº12} SDP < WANTED!
HEMINGRAY [130] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [133] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893 {First 'T' is engraved over an 'E'} SDP Photo
HEMINGRAY [135] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893 {Note 'A' in 'MAY' is missing left leg} SDP
HEMINGRAY [137] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893 {'P' is engraved over an 'M'} SDP < WANTED!
HEMINGRAY [140] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893 {Note 'E' is backwards} SDP < WANTED!
HEMINGRAY [143] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893/['Nº 12' blotted out] SDP
HEMINGRAY [147] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENT/MAY 2 1893 {Note 'A' in 'MAY' is missing bar} SDP Photo
HEMINGRAY [150] (F-Skirt) HEMINGRAY/Nº 12 (R-Skirt) PATENTED SDP Photo
HEMINGRAY [155] (F-Skirt) HEMINGRAY/Nº 12 {Note backwards number '1'} (R-Skirt) PATENT/MAY 2 1893 SDP < WANTED!
HEMINGRAY [157] (F-Skirt) HEMINGRAY/Nº 12 {Note '1' is upside down} (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [160] (F-Skirt) HEMINGRAY/Nº 12 {'A' is engraved over a 'Y'} (R-Skirt) PATENT/MAY 2 1893 SDP < WANTED!
HEMINGRAY [163] (F-Skirt) HEMINGRAY / Nº12 {First 'N' is engraved over a 'G'} (R-Skirt) PATENT / MAY 2 1893 SDP < WANTED!
HEMINGRAY [165] (F-Skirt) HEMINGRAY / Nº12 {Note 'Nº12' is over upside down 'Nº12'} (R-Skirt) PATENT / MAY 2 1893 SDP Photo
HEMINGRAY [167] (F-Skirt) HEMINGRAY / Nº12 {Note '2' is over '9'} (R-Skirt) PATENT / MAY 2 1893 SDP
HEMINGRAY [170] (F-Skirt) HEMINGRAY/Nº 12/['9' blotted out] (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [175] (F-Skirt) HEMINGRAY/Nº 12/['MAY 2 1893' blotted out] (R-Skirt) PATENT/MAY 2 1893 RDP
HEMINGRAY [180] (F-Skirt) HEMINGRAY/Nº 12/['MAY 2 1893' blotted out] (R-Skirt) PATENT/MAY 2 1893 SDP
HEMINGRAY [190] (F-Skirt) HEMINGRAY/Nº 9 {Note 'Nº 9' style number} (R-Skirt) PATENT/MAY 2 1893 SDP Photo
HEMINGRAY [200] (F-Skirt) HEMINGRAY/[Blotted out embossing]/Nº 12 (R-Skirt) PATENT/MAY 2 1893 SDP
NO EMBOSSING [010] [No embossing] SDP Photo
PATENT - OTHER [010] (F-Skirt) PATENTED {Hemingray product} SDP < MOST WANTED!

The following embossings were removed from the price guide because they could not be verified to exist:

Unverified Embossings
Year Removed
HEMINGRAY [080] (F-Skirt) HEMINGRAY-12 (R-Skirt) MADE IN U.S.A. / [Numbers and dots] RDP 2003
