Hemingray.info

CD 106
Hemingray №9
Insulator Facts

Dimensions:3 1⁄2" H × 2 1⁄4" W
Primary Embossings:The Primary Embossing is typically found on the front of the insulator and usually identifies either the manufacturer (such as "Hemingray") or the company that the insulator was made for (such as "AM.TEL.&TEL.CO.")

Insulators with No Name or No Embossing are denoted as such.
Years Produced: c.1890s-1940s
Style Identifier:Hemingray often used style numbers, letters, words, or a combination to differentiate their insulator styles (such as: T.S., E2, № 1 Provo Type, Muncie Type, etc.) These are often, but not always, embossed on the insulator.
9
Rarity Scale 0. No specimens known
1. Extremely Common (millions known)
2. Very Common
3. Common
4. Fairly Common
5. Uncommon
6. Very Uncommon
7. Rare (dozens known)
8. Very Rare (less than a dozen known)
9. Extremely Rare (2 or 3 known)
10. Unique (only one known)
Extremely Common (1/10)*
Usage: Telephone (Rural)
Trade Name: Pony
Hobby Nickname: Pony
Value Range: This is an estimated value range only, based on historical hobby collecting data. Insulator values vary widely depending on many factors, including embossing, color, condition, mold variations, manufacturing anomalies, and other attributes. Please visit the Hemingray Values page for more information.
$1-5000*
* Please Note: This insulator style is one of Hemingray's most common insulators. Please visit the Common Hemingrays page for more information.
Insulator Overview

The Hemingray 9 was a very popular pony style insulator, designed for rural telephone lines. These were produced in mass quantities, and can commonly be found in aqua, clear and ice blue. Other colors are generally less common and more desirable. This style was later replaced by the smaller CD 107 because it used less glass and was generally more robust.

Related Links:
Known Embossings (65)
Primary EmbossingThe Primary Embossing is typically found on the front of the insulator and usually identifies either the manufacturer (such as "Hemingray") or the company that the insulator was made for (such as "AM.TEL.&TEL.CO.")

Insulators with No Name or No Embossing are denoted as such.
EINThe Embossing Index Number (EIN) is a unique number assigned by the collecting hobby to each distinct embossing for an insulator design. It is normally shown in brackets, e.g. [050].
EmbossingMost common terms:
(F-Skirt): Front Skirt
(R-Skirt): Rear Skirt
/: New line of embossing
{}: Special note (not embossed on the insulator)
[#]: Represents a number

Other terms:
{MLOB}: Mold Line Over Base
(F-Crown): Front Crown
(R-Crown): Rear Crown
(F-Umbrella): Front Umbrella
(R-Umbrella): Rear Umbrella
BaseThe base is the bottom of the insulator. Hemingray made 4 different types of bases:

1. SDP: Sharp Drip Points
2. RDP: Round Drip Points
3. CB: Corrugated Base
4. SB: Smooth Base
Year AddedThis is the year that this embossing was officially recognized and added to the McDougald (1991-2008) or Briel (2011-2023) insulator price guides. It is not necessarily the year this embossing was discovered.
Status = In my collection

If the value in this column says WANTED, then that specific insulator is on my wanted list! If you have that insulator and would like to sell it, click on the WANTED link to submit photos and contact me.
AM. TEL. & TEL. CO. [010] (F-Skirt) AM. TEL. & TEL. CO.
Note: Not to be confused with the similarly embossed and much more common CD 121.
SDP - No PhotoWANTED
($1000 Reward)
HEMINGRAY Unlisted (F-Skirt) HEMINGRAY/№G {'G' is upside-down to resemble a '9'} (R-Skirt) PATENT/MAY 2 1893
Note: This is a stamped embossing, and is distinctly different from [253], which is hand engraved and missing the underlined 'º' in 'Nº'.
SDP - No Photo
HEMINGRAY [010] (Dome) 9 (F-Skirt) HEMINGRAY (R-Skirt) № 9 SDP - Photo
HEMINGRAY [020] (Dome) ['6', '7' or '9'] {'6' and '9' are underlined} (F-Skirt) HEMINGRAY-9 (R-Skirt) MADE IN U.S.A.
Note: Embossing corrected in 2015 price guide to add "7" as a possible dome number. "6" added in 2019 price guide.
SDP - Photo
HEMINGRAY [030] (Dome) 9 (F-Skirt) HEMINGRAY/MADE IN U.S.A. (R-Skirt) № 9 SDP - Photo
HEMINGRAY [035] (Dome) [Solid raised circle] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893 SDP 2019 No Photo-
HEMINGRAY [040] (F-Skirt) HEMIGRAY {Note spelling}/MADE IN U.S.A. (R-Skirt) № 9 SDP - Photo
HEMINGRAY [050] (F-Skirt) HEMIGRAY {Note spelling}/№ 9 (R-Skirt) PATENT/MAY 2 1893 SDP - Photo
HEMINGRAY [060] (F-Skirt) HEMINGAY {Note spelling}/№ 9 (R-Skirt) PATENT/MAY 2 1893 {'P'/'H'} SDP - Photo
HEMINGRAY [070] (F-Skirt) HEMINGRAY SB - No PhotoWANTED
($50 Reward)
HEMINGRAY [080] (F-Skirt) HEMINGRAY SDP - Photo
HEMINGRAY [085] (F-Skirt) HEMINGRAY (R-Skirt) MADE IN U.S.A. RDP 2019 No Photo-
HEMINGRAY [090] (F-Skirt) HEMINGRAY (R-Skirt) № 9 SB - Photo
HEMINGRAY [100] (F-Skirt) HEMINGRAY (R-Skirt) № 9 SDP - Photo
HEMINGRAY [105] (F-Skirt) HEMINGRAY (R-Skirt) № 9 (R-Skirt inside) [Vertical bar] SDP 2019 No Photo-
HEMINGRAY [110] (F-Skirt) HEMINGRAY-9 SDP - No PhotoWANTED
($30 Reward)
HEMINGRAY [120] (F-Skirt) HEMINGRAY-9 (R-Skirt) MADE IN U.S.A. RDP - Photo
NEW! HEMINGRAY [122] (F-Skirt) HEMENGRAY-9 {'E' instead of 'I'} (R-Skirt) MADE IN U.S.A. RDP 2023 No PhotoWANTED
($100 Reward)
NEW! HEMINGRAY [125] (F-Skirt) IIEMINGRAY-9 {Missing middle bar of 'H'} (R-Skirt) MADE IN U.S.A. RDP 2023 No Photo
HEMINGRAY [130] (F-Skirt) HEMINGRAY-9 (R-Skirt) MADE IN U.S.A. SDP - Photo
NEW! HEMINGRAY [135] (F-Skirt) HEMINGRAY-9 {'9'/'0'} (R-Skirt) MADE IN U.S.A. SDP 2023 No PhotoWANTED
HEMINGRAY [140] (F-Skirt) HEMINGRAY-9 (R-Skirt) MADE IN U.S.A./[# and dots] RDP - Photo
HEMINGRAY [142] (F-Skirt) HEMINGRAY-9 {'GRA'/'RAY'} (R-Skirt) MADE IN U.S.A./[# and dots] RDP 2019 No Photo

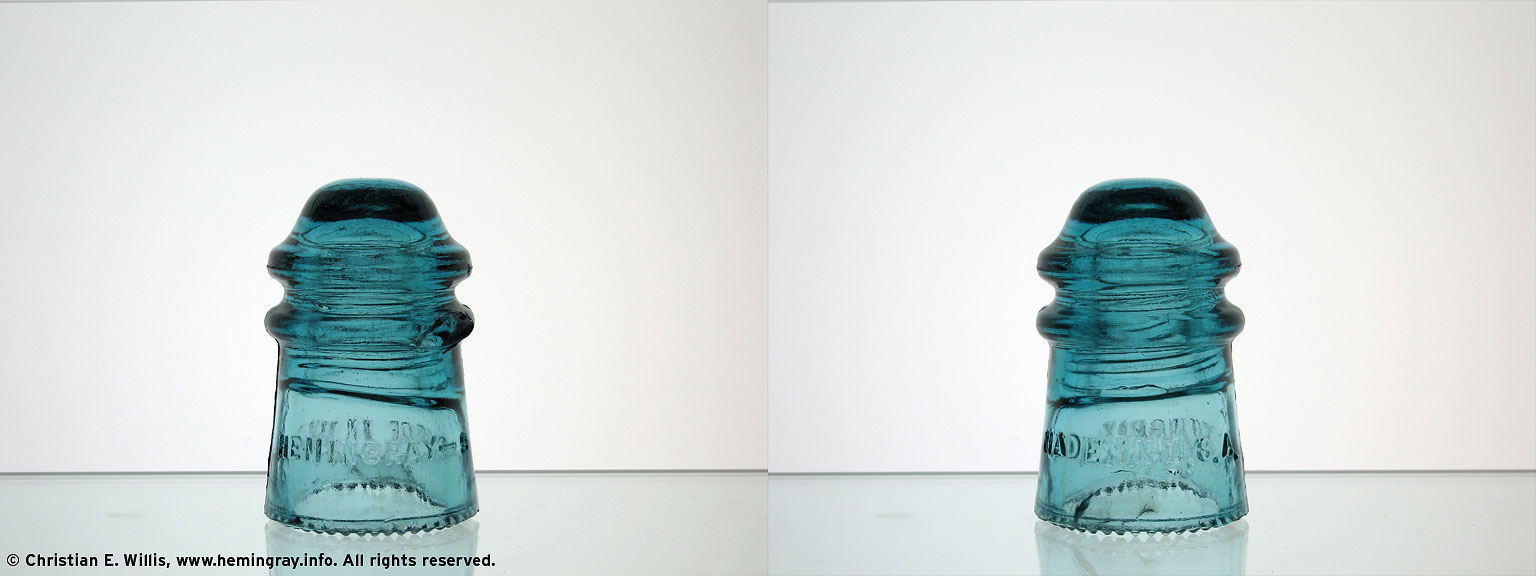

HEMINGRAY [145] (F-Skirt) HEMINGRAY-9 (R-Skirt) MADE IN U.S.A./['HEMINGRAY' blotted out] SDP 2003 Photo
HEMINGRAY [150] (F-Skirt) HEMINGRAY-9 (R-Skirt) MADE IN U.U.A. {Note spelling}/[# and dots]
Note: Known mold: 6B-0:.
RDP - Photo
HEMINGRAY [160] (F-Skirt) HEMINGRAY-9 {Backwards 'N'} (R-Skirt) MADE IN U.S.A. {Backwards 'N'} RDP - Photo
HEMINGRAY [170] (F-Skirt) HEMINGRAY-9 {Backwards 'N'} (R-Skirt) MADE IN U.S.A. {Backwards 'N'} SDP - No Photo-
HEMINGRAY [175] (F-Skirt) HEMINGRAY-9 {Backwards 'N'}/[#] (R-Skirt) MADE IN U.S.A. {Backwards 'N'} RDP 2015 No PhotoWANTED
($20 Reward)
HEMINGRAY [180] (F-Skirt) HEMINGRAY-9/[# and dots] (R-Skirt) MADE IN U.S.A./[#] RDP - Photo
HEMINGRAY [190] (F-Skirt) HEMINGRAY-9/[# and dots] (R-Skirt) [#]/MADE IN U.S.A. RDP - No Photo-
HEMINGRAY [200] (F-Skirt) HEMINGRAY-9/[#] (R-Skirt) MADE IN U.S.A. RDP - Photo
HEMINGRAY [205] (F-Skirt) HEMINGRAY-9/[# and dots] (F-Skirt) [#]/MADE IN U.S.A./['HEMINGRAY-9' blotted out] RDP 2003 No Photo-
HEMINGRAY [210] (F-Skirt) HEMINGRAY/M № 9 {Note extra 'M'} (R-Skirt) PATENT/MAY 2 1893 SDP - No Photo-
HEMINGRAY [220] (F-Skirt) HEMINGRAY/MADE IN U.S.A. (R-Skirt) № 9 SDP - Photo
HEMINGRAY [225] (F-Skirt) HEMINGRAY/MADE IN U.S.A. {Missing left leg of 'M'} (R-Skirt) № 9 SDP 2019 No Photo-
HEMINGRAY [230] (F-Skirt) HEMINGRAY/Nº9 {No line under 'º'} SB - Photo
HEMINGRAY [233] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893 {'9' in '1893' is an upside down 'G'} SDP 2015 Photo
HEMINGRAY [235] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) H PATENT {Note extra 'H'}/MAY 2 1893 SDP 2003 Photo
HEMINGRAY [250] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893 SDP - Photo
HEMINGRAY [251] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT {First 'T' of 'PATENT' over blot out}/MAY 2 1893 SDP 2015 No Photo-
HEMINGRAY [253] (F-Skirt) HEMINGRAY/Nº 9 {No line under 'º' and '9' may resemble a rotated 'G'} (R-Skirt) PATENT/MAY 2 1893
Note: Wording was added to the 2023 price guide that the '9' may resemble a rotated 'G' and consolidated with the similar [254] listing which was removed.
SDP 2015 No Photo-
HEMINGRAY [255] (F-Skirt) HEMINGRAY {'N'/'G'}/№ 9 (R-Skirt) PATENT/MAY 2 1893
Note: Note the correct embossing is PATENTED, not PATENT
SDP 2003 Photo
HEMINGRAY [257] (F-Skirt) HEMINGRAY {'HE'/'PA'}/№9 (R-Skirt) PATENT/MAY 2 1893 SDP 2019 No Photo
HEMINGRAY [260] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT {'PA'/'PAN'}/MAY 2 1893 SDP - No Photo-
HEMINGRAY [270] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893/[Blotted out embossing] SDP - No Photo-
HEMINGRAY [280] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893 {Backwards '9'} SDP - Photo
HEMINGRAY [285] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT {Missing left leg of 'N'}/MAY 2 1893 SDP 2019 No Photo-
NEW! HEMINGRAY [287] (F-Skirt) HEMINGRAY / №9 (R-Skirt) PATENT {Missing middle bar of 'A'} / MAY 2 1893 SDP 2023 No Photo
HEMINGRAY [290] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENTE {Note spelling}/MAY 2 1893 SDP - Photo
HEMINGRAY [300] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENTED RDP - No Photo-
HEMINGRAY [310] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENTED SDP - Photo
HEMINGRAY [315] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENTED {Second 'TE' in 'PATENTED' over blot out} SDP 2015 No Photo-
HEMINGRAY [320] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENTED/MAY 2 1893 RDP - No Photo-
HEMINGRAY [330] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENTED/MAY 2 1893 SDP - Photo
HEMINGRAY [332] (F-Skirt) HEMINGRAY/№ 9 {'HEMINGRAY' letters tapered so the underside of 'HEMINGRAY' forms a slight arc} (R-Skirt) PATENT/MAY 2 1893
Note: Wording was updated in the 2023 price guide to consolidate with [333]. Original wording from 2007: "HEMINGRAY letters tapered so the 'H' and 'Y' are much larger than the interior letters."
SDP 2007 No PhotoWANTED
($40 Reward)
HEMINGRAY [335] (F-Skirt) HEMINGRAY {'R'/'A'}/№ 9 (R-Skirt) PATENT {'E'/'N'}/MAY 2 1893 SDP 2003 No Photo-
HEMINGRAY [340] (F-Skirt) HEMINGRAY {Backwards 'N'}/№ 9 (R-Skirt) PATENT/MAY 1893 {Missing day in date} SDP - Photo
HEMINGRAY [350] (F-Skirt) HEMINGRAY {Backwards 'N'}/№ 9 (R-Skirt) PATENT/MAY 2 1893 SDP - No Photo-
HEMINGRAY [360] (F-Skirt) HEMINGRAY/['PATENT' blotted out]/№ 9/['MAY 2 1893' blotted out] (R-Skirt) PATENT/MAY 2 1893 SDP - Photo
HEMINGRAY [365] (F-Skirt) HEMINGRAY {Missing middle bar of 'A'}/№ 9 (R-Skirt) PATENT/MAY 2 1893 SDP 2007 No Photo-
HEMINGRAY [367] (F-Skirt) HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893 {Missing middle bar of 'A' in 'MAY'} SDP 2015 No Photo-
HEMINGRAY [370] (F-Skirt) HEMNGRAY-9 {Note spelling} (R-Skirt) MADE IN U.S.A. SDP - No Photo
HEMINGRAY [380] (F-Skirt) IIEMINGRAY {Missing middle bar of 'H'}/№ 9 (R-Skirt) PATENT/MAY 2 1893 SDP 2003 Photo
HEMINGRAY [390] HEMINGRAY/№ 9 (R-Skirt) PATENT/MAY 2 1893 {'MAY 2'/'№ 9'} SDP 2015 No Photo-
PATENT - OTHER [010] (F-Skirt) PATENT / MAY 2 1893 {Hemingray product} SDP - Photo
Removed Embossings (3)

The following embossing(s) were removed from the price guide because they could not be verified to exist, were consolidated with other embossings, or were otherwise ambiguous/inaccurate. They are preserved here for historical purposes.

Primary EmbossingThe Primary Embossing is typically found on the front of the insulator and usually identifies either the manufacturer (such as "Hemingray") or the company that the insulator was made for (such as "AM.TEL.&TEL.CO.")

Insulators with No Name or No Embossing are denoted as such.
EINThe Embossing Index Number (EIN) is a unique number assigned by the collecting hobby to each distinct embossing for an insulator design. It is normally shown in brackets, e.g. [050].
EmbossingMost common terms:
(F-Skirt): Front Skirt
(R-Skirt): Rear Skirt
/: New line of embossing
{}: Special note (not embossed on the insulator)
[#]: Represents a number

Other terms:
{MLOB}: Mold Line Over Base
(F-Crown): Front Crown
(R-Crown): Rear Crown
(F-Umbrella): Front Umbrella
(R-Umbrella): Rear Umbrella
BaseThe base is the bottom of the insulator. Hemingray made 4 different types of bases:

1. SDP: Sharp Drip Points
2. RDP: Round Drip Points
3. CB: Corrugated Base
4. SB: Smooth Base
Year Removed
HEMINGRAY [240] (F-Skirt) HEMINGRAY / №9 (R-Skirt) PATENT/MAY 2 1893 SB 2003
HEMINGRAY [254] (F-Skirt) HEMINGRAY/Nº 9 {No line under 'º' and '9' looks like an upside down 'G'} (R-Skirt) PATENT/MAY 2 1893
Note: This embossing was added in 2019 and removed from the 2023 price guide as it was consolidated with the [253] embossing.
SDP 2023
HEMINGRAY [333] (F-Skirt) HEMINGRAY/№ 9 {'HEMINGRAY' letters tapered so the underside of 'HEMINGRAY' forms an arc} (R-Skirt) PATENT/MAY 2 1893
Note: This embossing was removed in 2023 price guide and consolidated with the [332] embossing.
SDP 2023
Known Colors (57)
ColorThe color of the insulator.
7-up Green
Apple Green
Aqua
Aqua Tint
Blue
Blue Aqua
Blue/Green Two Tone
Bubbly Hemingray Blue
Clear
Clear/Aqua Two Tone
Clear/Blue Two Tone
Dark Aqua
Dark Green
Dark Lavender
Dark Purple
Dark Yellow Green
Emerald Green
Gray
Gray Blue
Gray Green
Gray Purple
Green
Green Aqua
Green Tint
Green/Aqua Two Tone
Hemingray Blue
Ice Aqua
Ice Blue
Ice Green
Ice Green Aqua
Jade Blue Milk
Jade Green Milk
Light 7-up Green
Light Apple Green
Light Aqua
Light Blue
Light Cornflower Blue
Light Depression Glass Green
Light Gray Purple
Light Green
Light Hemingray Blue
Light Jade Green Milk
Light Purple
Light Straw
Lilac
Lime Green
Milky Aqua
Milky Blue Aqua
Milky Hemingray Blue
Off Clear
Olive Green
Pink Tint
Purple
Purple/Gray Two Tone
Purple/Sage Green Two Tone
Sage Gray
Yellow Green
